Coder Task

Overview

Coder Tasks allow you to execute pre-defined code artifacts within your workflow. These tasks integrate the computational power of Coder Artifacts into your workflow processes. Coder Tasks are ideal for custom calculations, data transformations, and complex business logic implementation.

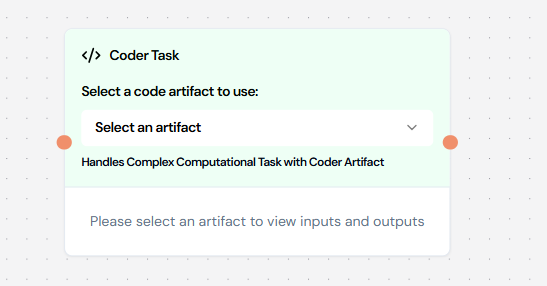

Visual Example

Configuration Structure

{
  "type": "CODER",
  "block": {
    "name": "Coder Task Name",
    "type": "CODER",
    "instructions": "Task instructions",
    "code_artifact_id": 123,
    "input_parameters": [],
    "expected_output": [],
    "dependencies": [],
    "error_policy": "RAISE"
  }
}

Required Fields

Field	Type	Description	Required
name	string	Task identifier	✅
instructions	string	Task instructions	✅
code_artifact_id	integer	Reference to code artifact	✅
input_parameters	array	Input configuration	✅
expected_output	array	Output configuration	✅
dependencies	array	Task dependencies	❌
error_policy	string	Error handling strategy	❌

Input Parameters

The input parameters define what data your Coder Task will receive. These parameters will be passed to the arguments dictionary in your Coder Artifact function.

Basic Input

{
  "name": "data",
  "type": "STRING",
  "description": "Input data for processing",
  "required": true,
  "source": "task_config"
}

Complex Input

{
  "name": "config",
  "type": "OBJECT",
  "description": "Configuration object",
  "properties": [
    {
      "name": "algorithm",
      "type": "STRING",
      "description": "Algorithm selection",
      "required": true
    },
    {
      "name": "parameters",
      "type": "OBJECT",
      "description": "Algorithm parameters",
      "properties": [
        {
          "name": "iterations",
          "type": "INTEGER",
          "description": "Number of iterations",
          "required": true
        }
      ]
    }
  ]
}

Output Parameters

Output parameters define the structure of data that your Coder Task will return. These should match the structure returned by your Coder Artifact function.

Simple Output

{
  "name": "result",
  "type": "STRING",
  "description": "Processing result"
}

Complex Output

{
  "name": "analysis_result",
  "type": "OBJECT",
  "properties": {
    "result": {
      "type": "FLOAT",
      "description": "Calculated value"
    },
    "metadata": {
      "type": "OBJECT",
      "description": "Processing metadata"
    },
    "logs": {
      "type": "ARRAY",
      "items": {
        "type": "STRING"
      },
      "description": "Processing logs"
    }
  }
}

Workflow Integration

Coder Tasks act as computational nodes in your workflow, taking input from previous tasks, processing it using the referenced Coder Artifact, and outputting results for subsequent tasks.

Common Use Cases

1. Data Transformation

{
  "name": "Transform Data",
  "code_artifact_id": 123,
  "instructions": "Transform input data according to specified rules",
  "input_parameters": [
    {
      "name": "data",
      "type": "OBJECT",
      "description": "Raw data object",
      "required": true
    },
    {
      "name": "transformation_rules",
      "type": "ARRAY",
      "description": "Transformation rules",
      "required": true
    }
  ],
  "expected_output": [
    {
      "name": "transformed_data",
      "type": "OBJECT",
      "description": "Transformed data"
    }
  ]
}

2. Custom Calculation

{
  "name": "Calculate Metrics",
  "code_artifact_id": 456,
  "instructions": "Calculate custom business metrics",
  "input_parameters": [
    {
      "name": "raw_metrics",
      "type": "ARRAY",
      "description": "Raw metric data",
      "required": true
    }
  ],
  "expected_output": [
    {
      "name": "calculated_metrics",
      "type": "OBJECT",
      "properties": {
        "kpi1": "FLOAT",
        "kpi2": "FLOAT",
        "summary": "STRING"
      }
    }
  ]
}

3. Invoice Processing

{
  "name": "Calculate Invoice Information",
  "code_artifact_id": 789,
  "instructions": "Compute the total invoice amount based on the collected item details",
  "input_parameters": [
    {
      "name": "items_to_be_billed",
      "type": "ARRAY",
      "items": {
        "type": "OBJECT",
        "properties": {
          "item_price": { "type": "STRING" },
          "item_quantity": { "type": "STRING" }
        }
      },
      "description": "List of items with price and quantity",
      "required": true
    }
  ],
  "expected_output": [
    {
      "name": "calculation_amount",
      "type": "OBJECT",
      "properties": {
        "total_tax": { "type": "STRING" },
        "current_date": { "type": "STRING" },
        "total_amount": { "type": "STRING" },
        "total_state_tax": { "type": "STRING" },
        "total_central_tax": { "type": "STRING" },
        "total_amount_with_gst": { "type": "STRING" }
      },
      "description": "Calculated invoice amounts"
    }
  ]
}

Best Practices

1. Code Artifact Management

✅ Do:

Use version control for your Coder Artifacts
Document dependencies clearly
Include test cases with your Coder Artifacts
Handle errors gracefully in your Python code (as shown in the Coder Artifact documentation)

❌ Don’t:

Hard-code configurations that might change
Ignore error cases in your Coder Artifact code
Skip input validation in your Python function
Mix business logic between Coder Tasks and Coder Artifacts

2. Input Parameters

✅ Do:

Validate all inputs in your Coder Artifact code
Document input requirements thoroughly
Use appropriate types that match your Coder Artifact expectations
Include examples in your documentation

❌ Don’t:

Skip validation in your Coder Artifact code
Use ambiguous parameter names
Ignore data types that will cause conversion issues

3. Output Handling

✅ Do:

Define clear output structure that matches your Coder Artifact return values
Include error information in your response
Add processing metadata when useful
Validate outputs in your Coder Artifact code

❌ Don’t:

Return raw errors without context
Skip validation of output data
Use inconsistent formats between Coder Artifact and Coder Task configurations

⚠️ Error Handling

Configuration

{
  "error_policy": "RAISE",
  "retry_count": 3,
  "retry_delay": 60
}

Error Types

Input Validation Errors: Occurs when input doesn’t match expected format
Processing Errors: Occurs during execution of the Coder Artifact
System Errors: Occurs due to system limitations or failures

🔗 Integration Examples

With AI Task

With Data Processing

❓ Common Issues and Solutions

Issue	Solution
Code Artifact Not Found	Verify artifact ID and ensure it’s published
Input Validation Failed	Check input types and format against Coder Artifact requirements
Processing Error	Review error logs in your Coder Artifact and retry
Memory Issues	Optimize data handling in your Python code

🏢 Examples by Industry

Finance

{
  "name": "Risk Calculator",
  "code_artifact_id": 789,
  "instructions": "Calculate investment risk metrics",
  "input_parameters": [
    {
      "name": "portfolio_data",
      "type": "OBJECT",
      "description": "Portfolio information",
      "required": true
    }
  ],
  "expected_output": [
    {
      "name": "risk_metrics",
      "type": "OBJECT",
      "properties": {
        "var": "FLOAT",
        "sharpe_ratio": "FLOAT",
        "risk_level": "STRING"
      }
    }
  ]
}

🔄 Connection with Coder Artifacts

Coder Tasks rely on well-designed Coder Artifacts to function properly. When creating a Coder Task:

Select an existing Coder Artifact from your knowledge base
Configure input parameters that match the expectations of your Coder Artifact’s function
Define expected output that aligns with what your Coder Artifact function returns
Provide clear instructions for maintainers to understand the task’s purpose

For detailed information on creating effective Coder Artifacts, refer to the Coder Artifact documentation.
